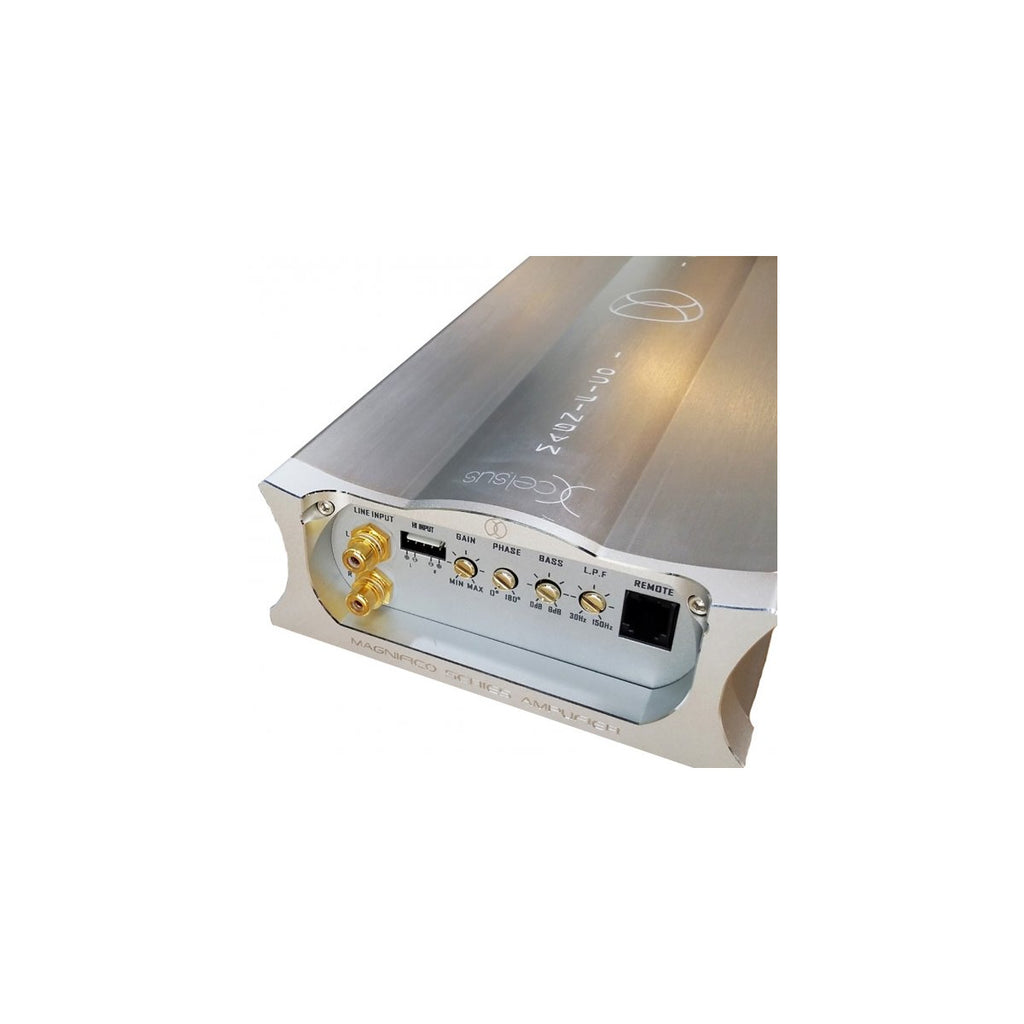

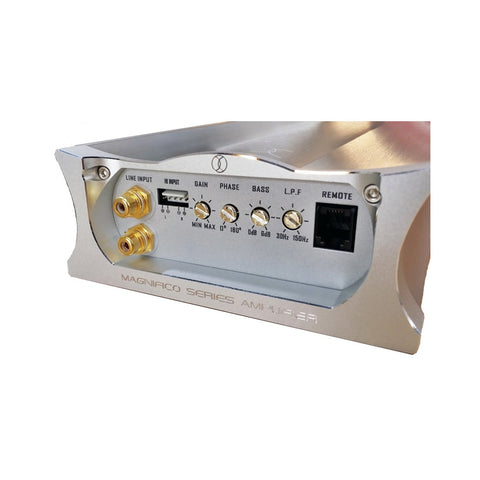

Xcelsus MAGN-1 Mono Amplifier

$999.95

or make 4 interest-free payments of $249.99 AUD fortnightly with Afterpay More info

MAGN-1 - Designed & Engineered in Sweden


Overview

Magnifico 1 is a mono amplifier that can satisfy the most discerning music lover. The selected components and sound settings are designed by famous ULTIMATE; REFEENCE and TA-2 amplifiers. It guarantees optimum sound quality.



Specifications

  • Number of channels 1
  • Amplifier class D
  • Power at 4 Ohm (RMS) 450 watts
  • Power at 2 Ohm (RMS) 750 watts
  • Power at 1 ohm load (RMS) 1000 watts (1250 watts  in Peak)
  • Signal to noise ratio, weighted average 92 dB
  • Attenuation coefficient 154
  • Operating frequency range 10-500 Hz
  • Input impedance, low 22000 ohm
  • Input impedance, high level 45 ohm
  • Input sensitivity 1-4 V
  • High level entrance With automatic start
  • Low pass filter with a slope of 24 dB 30-250 Hz
  • Bass boost @ 60 Hz 0 ... + 6 dB
  • Phase inverter  0-180 degrees
  • Remote Subwoofer Gain Control Yes, with a 5 meter cable
  • Recommended power cable thickness not less than 33 mm2
  • Recommended sound cable thickness not less than 10 mm2
  • Standby Current Consumption 0.6 (0.3) A
  • Maximum current 102 A
  • Built-in cooling fan Yes
  • External fuse 100 A
  • Internal fuse Not
  • Supply voltage 12 v
  • Dimensions 54 x 135 x 348 mm
  • Weight 2.9 kg
