Digital Designs DD Audio D5.1500 5-Channel Amplifier

$1,599.95

D SERIES 5 CHANNEL


Overview

The D5.1500 is a power packed full range multi-channel + monoblock hybrid amplifier designed for the everyday enthusiast wanting to drive an entire system with a single amplifier. Unlike other 5 channel amps, the D5.1500 has enough monoblock power to easily push a high output substage.



Features

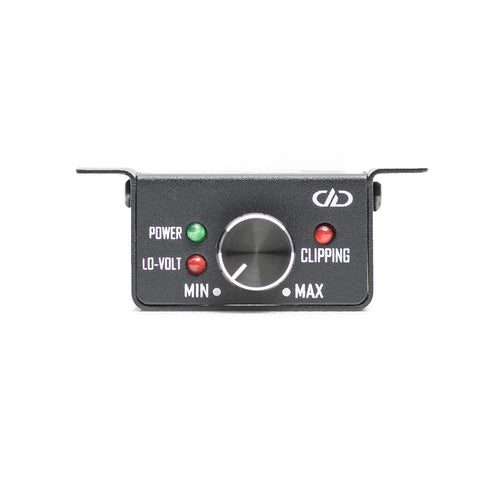

  • Remote Subwoofer Control w/ Clipping and Low Voltage Indicators
  • MOSFET Power Supply Amplifier

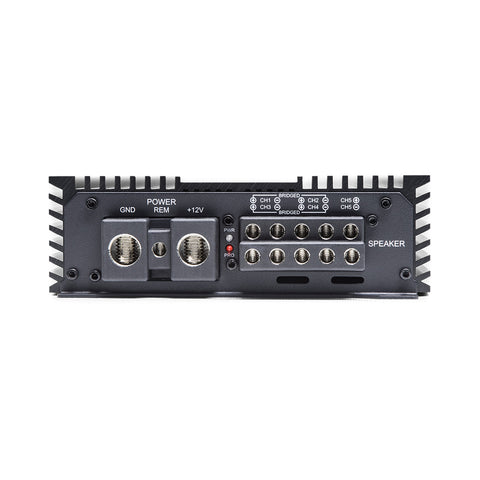

  • 0 Gauge Set Screw Power Terminals
  • 12 Gauge Set Screw Speaker Terminals

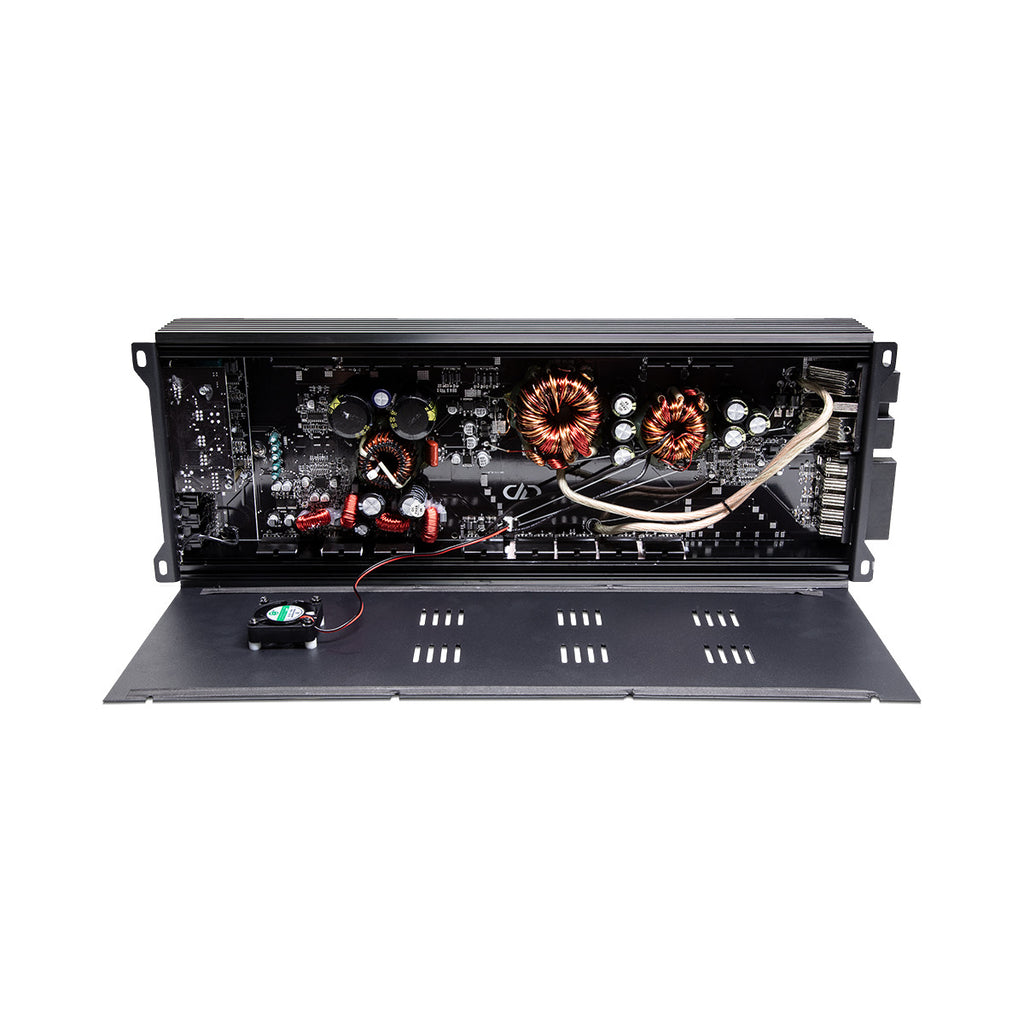

  • Heavy Duty PCB

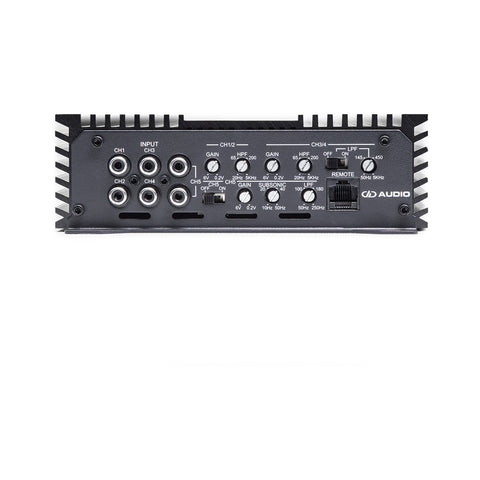

  • Variable HP/LP/BP Crossovers
  • 5-way Protection: Speaker Short, Thermal, Overload, Hi/Low Voltage, DC Offset



Specifications

  • Test Voltage 14.4
  • Channels 5
  • Cont Wattage @ 4ohm  (Ch 1-4) 125x4 / (CH 5) 680x1
  • Cont Wattage @ 2ohm  (CH 1-4) 180x4 / (CH 5) 1000x1
  • Cont Wattage @ 1ohm  (CH 5) 1500x1
  • Max Current Draw - Amperage  230
  • S/N Ratio >80dB
  • THD <0.2%
  • Input Voltage Sensitivity 6V ~ 0.2V
  • Pass-Through Output No
  • Remote Subwoofer Control Yes
  • Speaker Wire Gauge Out 12
  • Dimensions: in 17.7 x 6.8 x 2.1
  • Dimensions: mm 450 x 175 x 55
