Digital Designs DD Audio M5a Mono Amplifier 8000w RMS

$5,699.95

M5a - Designed & Engineered in the USA


Overview

The latest revisions of the M5a amplifiers push the design limits of the traditional M Series circuit as far as it can go. Internally the power supplies have been optimized to better support the immense internal power demands when listeners push their system to the edge of its capability. Externally the chassis has been revised for better cooling and optional aesthetic upgrades. These amps are also the first offerings from DD to be ZVL ready making multi amp systems easier to set up and control.

The M Series has been DD Audio's sub stage workhorses for over a decade. They are ultra-high performance class D monoblocks with compact footprints and big power. The M Series has an amp for virtually every size of power application. All M Series feature our innovative LV power supply technology that gives you the most power possible from your vehicle's charging system.



Features

  • Optimized High Current Power Supply
  • ZVL Linking Module Input
  • 24dB/Oct Bandpass Filters
  • Improved Cooling
  • Custom Vanity Plate Ready

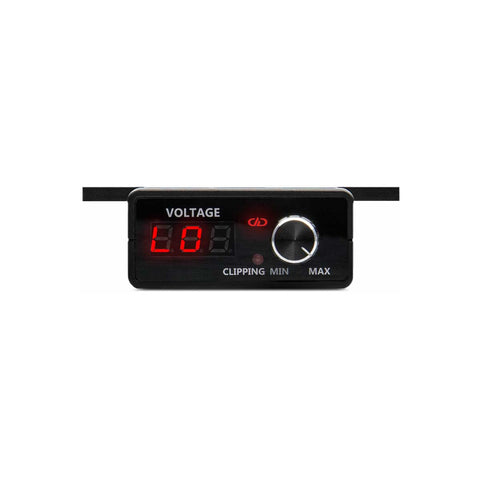

  • Remote w/ LCD Voltage Display and Clipping Indicator



Specifications

  • Operating Voltage: 9 - 16v
  • Test Voltage: 14.4
  • Channels: 1
  • Cont Wattage @ 4ohm: 2800
  • Cont Wattage @ 2ohm: 5000
  • Cont Wattage @ 1ohm: 8000
  • Dynamic Wattage: 10000
  • Max Current Wattage Draw – Amps: 800
  • RCA Input Sensitivity (Volts): 8v - 0.2v
  • Frequency Response: 13Hz - 208Hz
  • RCA Input S/N: >96dB
  • Damping Factor: > 210
  • Wattage: 8000
  • Pass-Through Output: No
  • Remote Subwoofer Control: Yes (Remote Included in Box)
  • Power Wire Gauge – In: 3 x 0
  • Speaker Wire Gauge – Out: 10
  • Dimensions (In): 27.5 x 9 x 2.6
