Digital Designs DD Audio M4000 Mono Amplifier 4000w RMS

$3,799.95

M4000 - Designed & Engineered in the USA


Overview

The next generation of the iconic M Series takes advantage of the latest semiconductor technology and combines it with state of the art amplifier design. This combination to offers power to footprint ratios previously impossible for current driven-half bridge amplifiers. Even though the chassis are more compact, the new M Series hasn’t lost any output power or stability. With robust heatsinks, multiple power and ground inputs, heavy duty PCBs, and top shelf internal components these amplifiers are ready to handle even the most demanding listening sessions.



Features

  • Optimized High Current Power Supply
  • ZVL Linking Module Input
  • 24dB/Oct Bandpass Filters
  • Custom Vanity Plate Ready

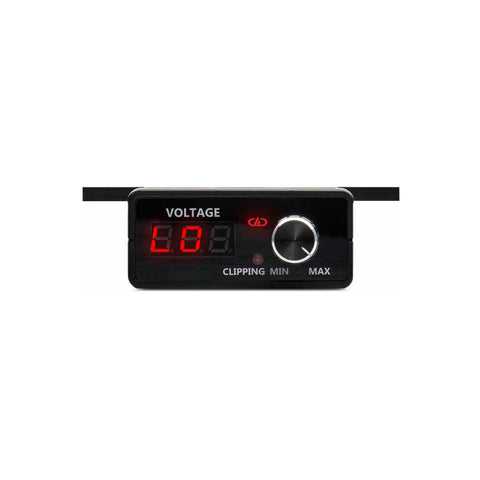

  • Remote / LCD Voltage Display and Clipping Indicator



Specifications

  • Operating Voltage: 9 - 16
  • Test Voltage: 14.4
  • Output Channel(s): 1
  • Continuous Wattage @4ohm: 1400
  • Continuous Wattage @2ohm: 2500
  • Continuous Wattage @1ohm: 4000
  • Dynamic Wattage: 6000
  • Max Current Draw (Amps): 400
  • RCA Input Voltage Sensitivity: 8 - 0.2
  • RCA Input S/N:  > 95dB
  • Damping Factor: > 400
  • THD: < 0.2%
  • Frequency Response (Hz): 10 - 200Hz
  • Sub-Sonic Filter: 10 - 50Hz
  • Low-Pass Filter: 20 - 200Hz
  • ZVL Input: Yes
  • Pass Thru Output: No
  • Remote Control: Remote Included in Box
  • Power Wire Gauge: 2 x 0
  • Speaker Wire Gauge: 10
  • Dimensions (Inches): 13 x 9 x 2.6
  • Dimensions (MM): 330 x 230 x 66
  • Shipping Weight (Lbs): 16
