Digital Designs DD Audio CC3 Crossover

DD Audio Audiophile Crossover per Pair

Overview

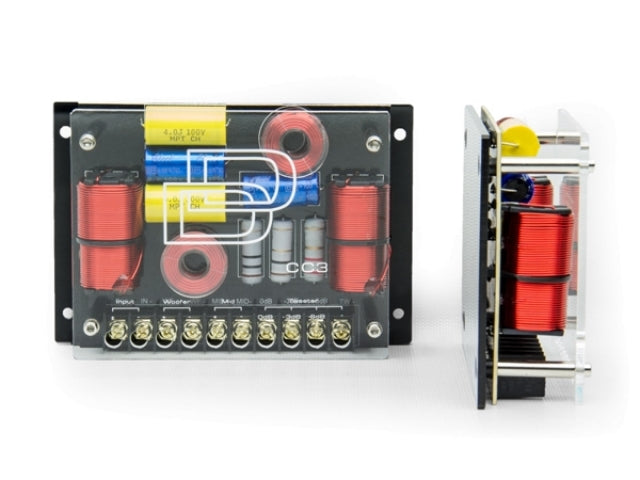

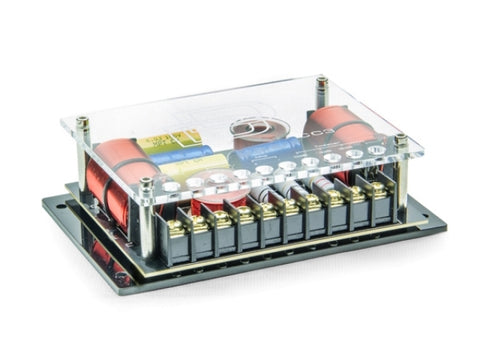

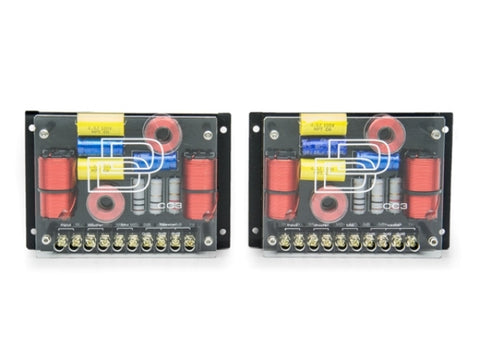

The CC3 2nd order 3-Way passive crossover is the perfect compliment to the DD-A Series components. By using a 3-way component configuration you’re able cover the entire audio spectrum in a more efficient manner. The CC3 helps your system to produce crystal clear audio by directing frequencies to the most optimal drivers in the component configuration. It is designed to handle up to 150 watts RMS power, and utilizes crossover frequencies of 300 Hz and 5,000 Hz with 12 dB per octave roll-off into a 4 ohm load. The CC3 also features 3 levels of tweeter attenuation, air core coils, metallized polypropylene capacitors, and 1% resistors. The mounting dimensions are 5.5″ x 3.75″ x 1.5″.

Specification

• Input Channels 1
• Output Channels Tweeter / Upper Mid-Range / Mid-Woofer
• Dimensions: in 5.5 x 3.75 x 1.5
• Dimensions: mm 140 x 95 x 38
• Shipping Weight – lbs 2
