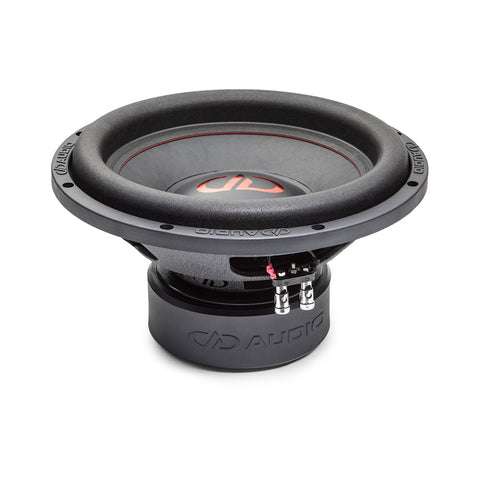

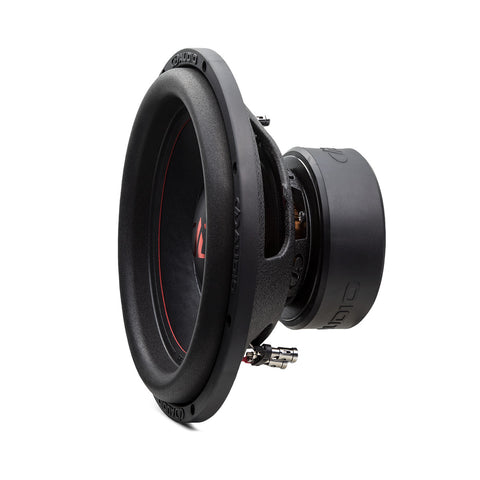

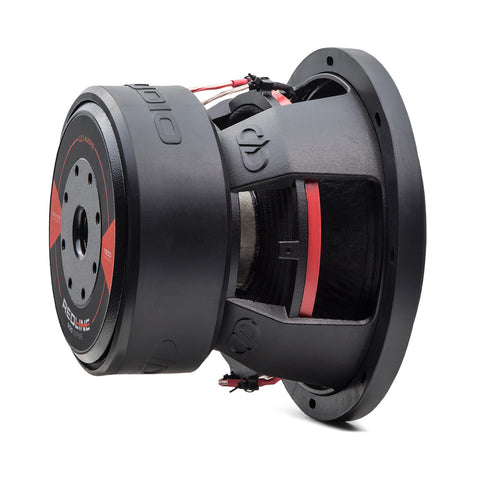

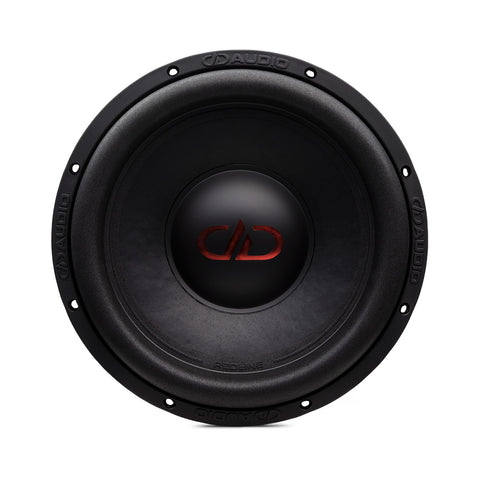

Digital Designs DD Audio 608D 8" Subwoofer

$369.95

or make 4 interest-free payments of $92.49 AUD fortnightly with Afterpay More info

LIKE A BOSS

Overview

The 600 Series is a great entry point for a higher performance system design that keeps the vehicle as close to stock as possible. These subs will perform like a boss on as little as 300-600 Watts, meaning even multiple woofer systems can be driven with one moderate powered amplifier. This keeps electrical upgrades minimal with less added strain on the vehicle. With a high energy, double stack motor paired with a laminated triple layer poly cotton spider suspension the 600 Series works best with vented and multi-order enclosures.

Any DD Audio Product bearing the Marine Grade logo incorporates water resistant features enabling it to be used in applications where moderate exposure to moisture will not result in damage to the product.

Marine Grade products are not waterproof, and submersion or excessive moisture exposure may result in product failure. DD Audio Marine Grade products are not certified for saltwater environments.



Features

  • EROM surround
  • High-temp, 2.5”, voice coil
  • Triple Layer Deep bass, high excursion spider system
  • Unique glass fiber and natural pulp cone
  • Back plate coil gap venting
  • Extended pole piece
  • DD stamped steel basket (610-612)
  • DD cast basket (608)



Specifications

  • Driver Size 8"
  • Watts RMS 300 - 600
  • Peak Power 1800
  • VCD 2.5
  • Impedance D2 / D4
  • Piston Dia – in 6 3/8
  • Fs – Hz 38.36
  • Qms 5.758
  • Qes 0.4991
  • Qts 0.4593
  • Vas – liters 7.377
  • Xmech – mm 64
  • Xmax – mm 13
  • Frame OD – in 8 5/16
  • Frame OD w/Gasket – in 8 1/2
  • Mounting Diameter – in 7 3/8
  • Mounting Depth – in 5 3/4
  • Motor Diameter – in 6 1/2
  • Motor Depth – in 2 1/2
  • Woofer Displacement - cu ft 0.07
  • Sealed Enclosure - cu ft N/A
  • Ported Enclosure - cu ft 0.75 - 1.25
  • Shipping Weight – lbs 17
